How Do I Host This Website in an Azure K8S Cluster
Explains how I built my website on an Azure-hosted K8S cluster.
Note (May 2026): This article reflects the AKS-Engine, Helm v2/Tiller, older cert-manager, and
extensions/v1beta1Ingress APIs used around Kubernetes 1.10-1.13. Modern Kubernetes clusters generally use Helm v3, newer cert-manager APIs,networking.k8s.io/v1Ingress, and managed AKS or Cluster API-style provisioning. Use this post as historical context and update the manifests before applying them today.
0 Background
This website is hosted in a Kubernetes cluster with three Azure B2S VMs. In the following sections, I am going to explain how I built the whole cluster and how to leverage Kubernetes to provide the infrastructure support. aks-engine, Helm, cert-manager, and the nginx-ingress controller will be discussed here.
1 Set Up a K8S Cluster with AKS-Engine
Recently, Microsoft started a new project called AKS-Engine to replace its old project ACS-Engine. Basically, AKS-Engine is the successor to ACS-Engine. Microsoft migrated all ACS-Engine code to AKS-Engine and provides updated support for new K8S deployments. So I decided to use AKS-Engine to deploy my K8S cluster.
The latest AKS-Engine can be downloaded from here. Download and extract aks-engine so we can use it to create a K8S cluster. The complete deployment guide can be found at this link.
1.1 Define a template
To create a cluster, we need a template file that will be used in the aks-engine command line. I’d like to try the newest K8S release, so I set orchestratorRelease to 1.13.1. By default, aks-engine will use Azure advanced networking as the network plugin. Here is my template k8s113.json.
{
"apiVersion": "vlabs",
"properties": {
"orchestratorProfile": {
"orchestratorType": "Kubernetes",
"orchestratorRelease": "1.13.1"
},
"masterProfile": {
"count": 1,
"dnsPrefix": "<REPLACE_WITH_A_DNS_PREFIX>",
"vmSize": "Standard_B2s"
},
"agentPoolProfiles": [
{
"name": "agentpool1",
"count": 2,
"vmSize": "Standard_B2s",
"availabilityProfile": "AvailabilitySet"
}
],
"linuxProfile": {
"adminUsername": "<REPLACE_WITH_ADMIN_USER_NAME>",
"ssh": {
"publicKeys": [
{
"keyData": "<SSH_PUBLIC_KEY_DATA>"
}
]
}
},
"servicePrincipalProfile": {
"clientId": "<appId>",
"secret": "<password>"
}
}
}Note: clientID and secret map to a service principal’s appId and password. If you don’t have a service principal yet, you can create one by using the following commands.
az login
az account set --subscription="${SUBSCRIPTION_ID}"
az ad sp create-for-rbac --role="Contributor" --scopes="/subscriptions/${SUBSCRIPTION_ID}"1.2 Deploy K8S cluster
Using aks-engine to deploy a K8S cluster is pretty simple. Just run the command below.
aks-engine deploy --resource-group "AKSEngine" --location "<ANY_LOCATION>" --subscription-id "<AZURE_SUBSCRIPTION_ID>" --api-model "k8s113.json"Note: you can use az account list-locations to get a complete list of locations.
2 Deploy website
This website is based on Ghost, the professional publishing platform. To publish this website to the internet, we also need a public IP address as well as an SSL certificate. So I am going to deploy and use the following applications in the K8S cluster.
- cert-manager (to request a SSL certificate)
- nginx-ingress controller (expose website to internet)
- kubeapps (web based helm UI)
- ghost (my website)
In the K8S world, Helm can help manage Kubernetes applications, and there are plenty of charts available, so I am going to use Helm to deploy these applications.
Helm can be downloaded and installed from here. Helm comes with two components: the client tool helm and the K8S server component Tiller. By default, aks-engine already has Tiller deployed in the kube-system namespace. However, to avoid error messages like “incompatible versions client[v2.x.x] server[v2.x.x]”, it’s always a good practice to run helm init --upgrade to upgrade the server component.
2.1 Deploy cert-manager
We are going to use cert-manager with Let’s Encrypt to request a free SSL certificate for our website. Installing cert-manager is very simple with Helm; just run:
helm install stable/cert-manager --name arracs-cert-manager --namespace kube-system --set ingressShim.defaultIssuerName=letsencrypt-prod --set ingressShim.defaultIssuerKind=ClusterIssuerNote: cert-manager can be configured to automatically provision TLS certificates for Ingress resources via annotations on your Ingresses, refer to here, this feature is enabled by default since cert-manager v0.2.2.
If you would also like to use the old kube-lego kubernetes.io/tls-acme: “true” annotation for fully automated TLS, you will need to configure a default Issuer when deploying cert-manager. This can be done by adding the following —set when deploying using Helm:
—set ingressShim.defaultIssuerName=letsencrypt-prod
—set ingressShim.defaultIssuerKind=ClusterIssuer
The command above basically means that if an Ingress object is created, cert-manager will use the letsencrypt-prod ClusterIssuer to automatically create a certificate for that Ingress object. For all Ingress objects with the kubernetes.io/tls-acme: “true” annotation, it uses the ClusterIssuer we specified in “—set” to create the certificate.
As we use the letsencrypt-prod ClusterIssuer, we also need to define it so that cert-manager knows where to request certificates. The letsencrypt-issuer.yaml below defines two ClusterIssuers: one is for letsencrypt-prod (used in our production website), and the other is for letsencrypt-staging (used for testing).
# letsencrypt-issuer.yaml
apiVersion: certmanager.k8s.io/v1alpha1
kind: Issuer
metadata:
name: letsencrypt-prod
namespace: kube-system
spec:
acme:
# Email address used for ACME registration
email: huangyingting@outlook.com
http01: {}
# Name of a secret used to store the ACME account private key
privateKeySecretRef:
key: ""
name: letsencrypt-prod
server: https://acme-v01.api.letsencrypt.org/directory
---
apiVersion: certmanager.k8s.io/v1alpha1
kind: Issuer
metadata:
name: letsencrypt-staging
namespace: kube-system
spec:
acme:
server: https://acme-staging.api.letsencrypt.org/directory
# Email address used for ACME registration
email: huangyingting@outlook.com
# Name of a secret used to store the ACME account private key
privateKeySecretRef:
name: letsencrypt-staging
http01: {}Run the command below to apply letsencrypt-issuer.yaml to the K8S cluster.
#kubectl apply -f letsencrypt-issuer.yaml
issuer.certmanager.k8s.io/letsencrypt-prod created
issuer.certmanager.k8s.io/letsencrypt-staging created2.2 Deploy nginx-ingress controller
We need an ingress controller to expose our service to the internet. We will use nginx-ingress. Here is the command to install this ingress controller.
helm install stable/nginx-ingress --name arracs-nginx-ingress --namespace kube-system --set controller.replicaCount=2The nginx-ingress controller will create a LoadBalancer with a public IP. From the output below,
#kubectl get svc --all-namespaces
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default kubernetes ClusterIP 10.0.0.1 <none> 443/TCP 20m
kube-system arracs-nginx-ingress-controller LoadBalancer 10.0.130.113 <pending> 80:31726/TCP,443:32222/TCP 2m
kube-system arracs-nginx-ingress-default-backend ClusterIP 10.0.88.109 <none> 80/TCP 2m
kube-system heapster ClusterIP 10.0.78.216 <none> 80/TCP 20m
kube-system kube-dns ClusterIP 10.0.0.10 <none> 53/UDP,53/TCP 20m
kube-system kubernetes-dashboard NodePort 10.0.121.103 <none> 443:30909/TCP 20m
kube-system metrics-server ClusterIP 10.0.117.153 <none> 443/TCP 20m
kube-system tiller-deploy ClusterIP 10.0.217.230 <none> 44134/TCP 20m2.3 Deploy kubeapps
Kubeapps is a web-based UI for deploying and managing applications in Kubernetes clusters. To experience web-based deployment, I installed kubeapps with the steps below.
2.3.1 Add bitnami helm charts repo
helm repo add bitnami https://charts.bitnami.com/bitnami
"bitnami" has been added to your repositories2.3.2 Install kubeapps
helm install --name kubeapps --namespace kubeapps bitnami/kubeapps2.3.3 Create token to access kubeapps
kubectl create serviceaccount kubeapps-operator
serviceaccount/kubeapps-operator createdkubectl create clusterrolebinding kubeapps-operator --clusterrole=cluster-admin --serviceaccount=default:kubeapps-operator
clusterrolebinding.rbac.authorization.k8s.io/kubeapps-operator created2.3.4 Access kubeapps
The default deployment didn’t create LoadBalancer/Ingress, so I used kubectl port-forward to access kubeapps’ dashboard
kubeapps-internal-dashboard is the service we are going to access
kubectl get svc -n=kubeapps
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubeapps ClusterIP 10.0.3.152 <none> 80/TCP 22h
kubeapps-internal-chartsvc ClusterIP 10.0.77.63 <none> 8080/TCP 22h
kubeapps-internal-dashboard ClusterIP 10.0.9.135 <none> 8080/TCP 22h
kubeapps-internal-tiller-proxy ClusterIP 10.0.95.205 <none> 8080/TCP 22h
kubeapps-mongodb ClusterIP 10.0.170.238 <none> 27017/TCP 22hRunning the commands below will create port forwarding to the kubeapps dashboard. Accessing localhost:8080 will redirect to kubeapps-internal-dashboard.
kubectl port-forward -n kubeapps svc/kubeapps-internal-dashboard 8080:8080
Forwarding from 127.0.0.1:8080 -> 8080

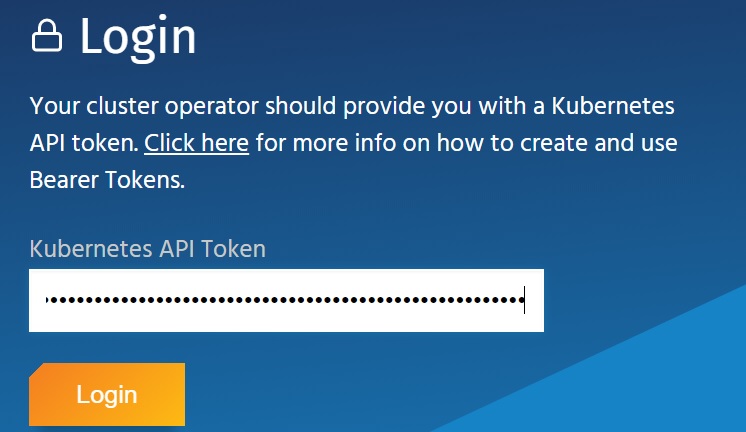

Forwarding from [::1]:8080 -> 8080Now, we can access kubeapps from a browser by visiting http://127.0.0.1:8080, but we still need an API token to log in. Use the command below to retrieve the API token created in step 2.3.3.
kubectl get secret $(kubectl get serviceaccount kubeapps-operator -o jsonpath='{.secrets[].name}') -o jsonpath='{.data.token}' | base64 --decode
2.4 Deploy ghost
From command window, run
kubectl create namespace ghostto create a namespace “ghost” in order to deploy all Ghost-related applications into it.

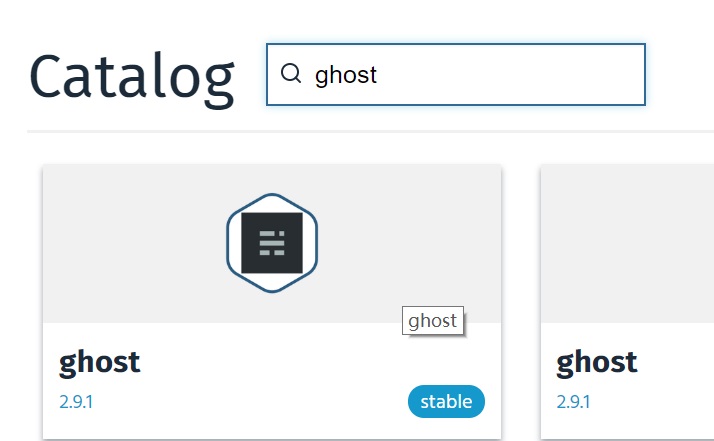

After logging into the kubeapps web console, choose NAMESPACE as “ghost”, then from the “Catalog” tab, search for Ghost and click the stable version.

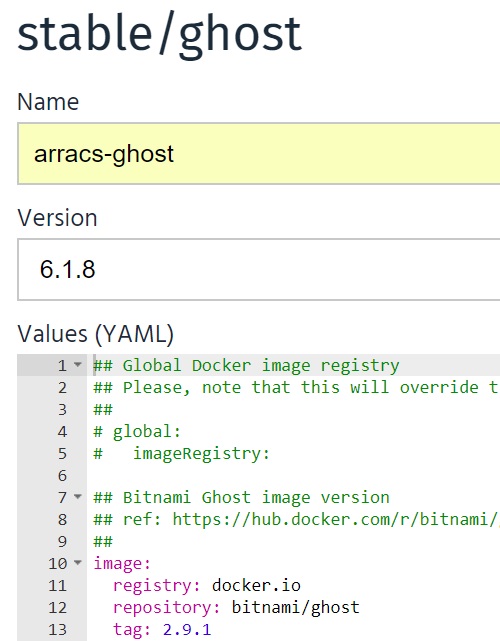

Then click “Deploy using Helm”. From the deployment page, name the deployment and set the values below, then click “Submit” to deploy.
## Bitnami Ghost image version
## ref: https://hub.docker.com/r/bitnami/ghost/tags/
##
image:
registry: docker.io
repository: bitnami/ghost
tag: 2.9.1
## Specify a imagePullPolicy
## Defaults to 'Always' if image tag is 'latest', else set to 'IfNotPresent'
## ref: http://kubernetes.io/docs/user-guide/images/#pre-pulling-images
##
pullPolicy: IfNotPresent
## Optionally specify an array of imagePullSecrets.
## Secrets must be manually created in the namespace.
## ref: https://kubernetes.io/docs/tasks/configure-pod-container/pull-image-private-registry/
##
# pullSecrets:
# - myRegistrKeySecretName
##
## Init containers parameters:
## volumePermissions: Change the owner of the persist volume mountpoint to RunAsUser:fsGroup
##
volumePermissions:
image:
registry: docker.io
repository: bitnami/minideb
tag: latest
pullPolicy: Always
## Ghost host and path to create application URLs
## ref: https://github.com/bitnami/bitnami-docker-ghost#configuration
##
ghostHost: msazure.club
ghostPath: /
## User of the application
## ref: https://github.com/bitnami/bitnami-docker-ghost#configuration
##
ghostUsername: <REPLACE_WITH_USERNAME>
## Application password
## Defaults to a random 10-character alphanumeric string if not set
## ref: https://github.com/bitnami/bitnami-docker-ghost#configuration
##
ghostPassword: <REPLACE_WITH_PASSWORD>
## Admin email
## ref: https://github.com/bitnami/bitnami-docker-ghost#configuration
##
ghostEmail: <REPLACE_WITH_ADMIN_EMAIL>
## Ghost Blog name
## ref: https://github.com/bitnami/bitnami-docker-ghost#environment-variables
##
ghostBlogTitle: msazure
## Set to `yes` to allow the container to be started with blank passwords
## ref: https://github.com/bitnami/bitnami-docker-wordpress#environment-variables
allowEmptyPassword: "yes"
## SMTP mail delivery configuration, don't leave it empty, otherwise the deployment will fail.
## ref: https://github.com/bitnami/bitnami-docker-redmine/#smtp-configuration
##
smtpHost: <REPLACE_WITH_SMTP_SERVER>
smtpPort: <REPLACE_WIHT_SMTP_PORT>
smtpUser: <REPLACE_WITH_SMTP_USER>
smtpPassword: <REPLACE_WITH_SMTP_PASSWORD>
smtpService: <REPLACE_WITH_STMP_SERVICE>
##
## MariaDB chart configuration
##
## https://github.com/helm/charts/blob/master/stable/mariadb/values.yaml
##
mariadb:
## Whether to deploy a mariadb server to satisfy the applications database requirements. To use an external database set this to false and configure the externalDatabase parameters
enabled: true
## Disable MariaDB replication
replication:
enabled: false
## Create a database and a database user
## ref: https://github.com/bitnami/bitnami-docker-mariadb/blob/master/README.md#creating-a-database-user-on-first-run
##
db:
name: db_ghost
user: usr_ghost
## If the password is not specified, mariadb will generates a random password
##
password: <REPLACE_WITH_PASWORD>
## MariaDB admin password
## ref: https://github.com/bitnami/bitnami-docker-mariadb/blob/master/README.md#setting-the-root-password-on-first-run
##
rootUser:
password: <REPLACE_WIHT_PASSWORD>
## Enable persistence using Persistent Volume Claims
## ref: http://kubernetes.io/docs/user-guide/persistent-volumes/
##
master:
persistence:
enabled: true
## mariadb data Persistent Volume Storage Class
## If defined, storageClassName: <storageClass>
## If set to "-", storageClassName: "", which disables dynamic provisioning
## If undefined (the default) or set to null, no storageClassName spec is
## set, choosing the default provisioner. (gp2 on AWS, standard on
## GKE, AWS & OpenStack)
##
# storageClass: "-"
accessMode: ReadWriteOnce
size: 8Gi
## As ingress will be used below, just use ClusterIP for service
##
service:
type: ClusterIP
# HTTP Port
port: 80
## Pod Security Context
## ref: https://kubernetes.io/docs/tasks/configure-pod-container/security-context/
##
securityContext:
enabled: true
fsGroup: 1001
runAsUser: 1001
## Enable persistence using Persistent Volume Claims
## ref: http://kubernetes.io/docs/user-guide/persistent-volumes/
##
persistence:
enabled: true
## ghost data Persistent Volume Storage Class
## If defined, storageClassName: <storageClass>
## If set to "-", storageClassName: "", which disables dynamic provisioning
## If undefined (the default) or set to null, no storageClassName spec is
## set, choosing the default provisioner. (gp2 on AWS, standard on
## GKE, AWS & OpenStack)
##
# storageClass: "-"
accessMode: ReadWriteOnce
size: 8Gi
path: /bitnami
## Configure resource requests and limits
## ref: http://kubernetes.io/docs/user-guide/compute-resources/
##
resources:
requests:
memory: 512Mi
cpu: 300m
## Configure the ingress resource that allows you to access the
## Ghost installation. Set up the URL
## ref: http://kubernetes.io/docs/user-guide/ingress/
##
ingress:
## Set to true to enable ingress record generation
enabled: true
## The list of hostnames to be covered with this ingress record.
## Most likely this will be just one host, but in the event more hosts are needed, this is an array
hosts:
- name: msazure.club
## Set this to true in order to enable TLS on the ingress record
## A side effect of this will be that the backend ghost service will be connected at port 443
tls: true
## Set this to true in order to add the corresponding annotations for cert-manager
certManager: true
## If TLS is set to true, you must declare what secret will store the key/certificate for TLS
tlsSecret: msazure-club-tls
## Ingress annotations done as key:value pairs
## For a full list of possible ingress annotations, please see
## ref: https://github.com/kubernetes/ingress-nginx/blob/master/docs/annotations.md
##
## If tls is set to true, annotation ingress.kubernetes.io/secure-backends: "true" will automatically be set
annotations:
kubernetes.io/ingress.class: nginxSome comments on the values above: since ingress is used, it will trigger cert-manager to request a certificate from Let’s Encrypt. The protocol being used is ACME. Let’s Encrypt will verify that you own the domain, which means you must point the DNS A record msazure.club to the ingress controller’s public IP; otherwise, the certificate request will fail. For more details, please refer to How It Works - Let’s Encrypt.

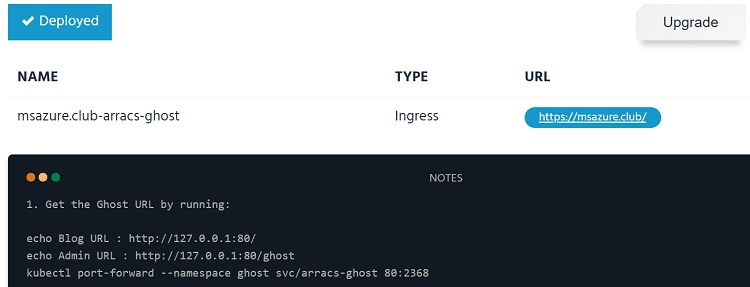

If the deployment goes well, kubeapps will eventually show “Deployed” like below
2.5 Visiting/tuning website
Once the deployment is finished, open a browser and access GHOST_URL/. It should render the website correctly.
As we use the nginx-ingress controller, by default it only allows uploading files up to 1MB. If the uploaded image size exceeds 1MB, Ghost will report “The image you uploaded was larger than the maximum file size your server allows.” Luckily, nginx ingress provides annotations for specific ingress objects to customize their behavior. We can use the “nginx.ingress.kubernetes.io/proxy-body-size” annotation to control nginx behavior.
So I followed below steps modified ingress object
2.5.1 List ingress object
kubectl get ing -n=ghost
NAME HOSTS ADDRESS PORTS AGE
msazure.club-arracs-ghost msazure.club 80, 443 22h2.5.2 Modify ingress object msazure.club-arracs-ghost
kubectl edit ing msazure.club-arracs-ghost -n=ghostModify its definition to
# Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
#
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
annotations:
kubernetes.io/ingress.class: nginx
kubernetes.io/tls-acme: "true"
nginx.ingress.kubernetes.io/proxy-body-size: 10m
creationTimestamp: "2018-12-22T14:05:28Z"
...When the “nginx.ingress.kubernetes.io/proxy-body-size” annotation is added, the configuration change will be applied to nginx very soon. To verify it, we can run:
kubectl get pod -n=kube-system | grep nginx-ingress-controller
arracs-nginx-ingress-controller-8b955dc4c-5mnsh 1/1 Running 0 10h
arracs-nginx-ingress-controller-8b955dc4c-ll5l8 1/1 Running 0 10hkubectl exec -it -n=kube-system arracs-nginx-ingress-controller-8b955dc4c-5mnsh -- cat /etc/nginx/nginx.conf | grep client_max_body_size
client_max_body_size 10m;
client_max_body_size 10m;2.6 Up and Running
With the configurations above, my website GHOST_URL/ should be up and running now :).
3 Upgrade K8S cluster
For some unknown reason, the Kubernetes cluster version was not at 1.13.1. kubectl version showed it was at version 1.10.12, so I used the command below to upgrade my cluster to version 1.11.6, then 1.12.4, and finally 1.13.1.
aks-engine upgrade --subscription-id "REPLACE_WIHT_SUBSCRIPTION_ID" --deployment-dir ./_output/arracs --location <REPLACE_WITH_LOCATION> --resource-group AKSEngine --upgrade-version 1.11.6 --auth-method client_secret --client-id <REPLACE_WITH_CLIENT_ID> --client-secret <REPLACE_WITH_CLIENT_SECRET>Upgrading a cluster from aks-engine basically works in the following sequence.
- Delete the original master nodes and deploy new master nodes with the upgraded version.
- Drain agent nodes one by one, delete each agent node, and deploy an agent node with the upgraded version.
- During the upgrade, the cluster public IP address remains.
The whole upgrade process basically won’t interrupt the services running from the cluster, although there will be a short downtime window when pods are migrated from one node to another. For example, during the upgrade, I was still able to access my website.
4 Explore K8S concepts
4.1 Access kubernetes dashboard
By default, the ServiceAccount used by the dashboard does not have enough rights to access all resources. To solve the problem, we need to assign the cluster-admin role to it. Here is the command to do it.
kubectl create clusterrolebinding kubernetes-dashboard -n kube-system --clusterrole=cluster-admin --serviceaccount=kube-system:kubernetes-dashboardAfter that, use the command below to redirect traffic to the API server.
kubectl proxy --port 8080Then, from a browser, visit the URL below, and the Kubernetes dashboard should be accessible. http://localhost:8080/api/v1/namespaces/kube-system/services/https:kubernetes-dashboard:/proxy/
4.2 Services
There are 3 types of services, ClusterIP, NodePort and LoadBalancer. For example
kubectl get svc --all-namespaces
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default kubernetes ClusterIP 10.0.0.1 <none> 443/TCP 2d23h
ghost arracs-ghost ClusterIP 10.0.134.104 <none> 80/TCP 7h4m
ghost arracs-ghost-mariadb ClusterIP 10.0.35.211 <none> 3306/TCP 7h4m
kube-system arracs-nginx-ingress-controller LoadBalancer 10.0.17.238 13.76.133.101 80:31289/TCP,443:31146/TCP 2d23h
kube-system arracs-nginx-ingress-default-backend ClusterIP 10.0.173.204 <none> 80/TCP 2d23h
kube-system heapster ClusterIP 10.0.16.142 <none> 80/TCP 2d23h
kube-system kube-dns ClusterIP 10.0.0.10 <none> 53/UDP,53/TCP 2d23h
kube-system kubernetes-dashboard NodePort 10.0.100.128 <none> 443:31728/TCP 2d23h
kube-system metrics-server ClusterIP 10.0.41.92 <none> 443/TCP 2d23h
kube-system tiller-deploy ClusterIP 10.0.202.135 <none> 44134/TCP 2d23hWhen accessing a Service, the traffic flow will be:
- ClusterIP:
: -> : - NodePort:
: -> : - LoadBalancer:
: -> :

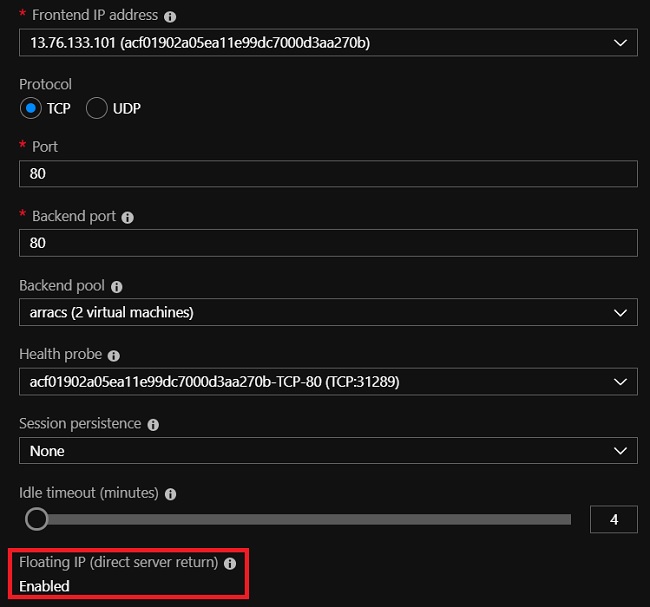

Specifically, LoadBalancer exposes the Service externally using a cloud provider’s load balancer. In Azure, if you check the setting of the load balancer’s public IP, you will see it is using “Floating IP”. When “Floating IP” is enabled, Azure will directly send packets to the agent node without modifying their SrcIP and DestIP.
Inbound traffic’s destination IP (the load balancer’s public IP with floating IP enabled) will eventually be DNAT-ed to the Pod IP from the agent node (not by Azure) by Kubernetes. The purpose of using “Floating IP” is that Kubernetes needs the destination IP address information to associate it with the corresponding Service. Here is a sample of the iptables rules programmed for the load balancer in my K8S cluster. 13.76.133.101 is the load balancer’s public IP address, and the last rule is the DNAT rule.
...
-A KUBE-SERVICES -d 13.76.133.101/32 -p tcp -m comment --comment "kube-system/arracs-nginx-ingress-controller:https loadbalancer IP" -m tcp --dport 443 -j KUBE-FW-JORQ6NA4OOQ53UTX
...
-A KUBE-SVC-JORQ6NA4OOQ53UTX -m statistic --mode random --probability 0.50000000000 -j KUBE-SEP-P3VRGVWU3CDZJRKA
-A KUBE-SVC-JORQ6NA4OOQ53UTX -j KUBE-SEP-R524ZW4QEMUCZWEH
...
-A KUBE-SEP-P3VRGVWU3CDZJRKA -p tcp -m tcp -j DNAT --to-destination 10.240.0.42:4434.3 PersistentVolume(PV) and PersistentVolumeClaim(PVC)
The detailed explanation of PV and PVC can be found here. Ghost Helm charts will deploy two PVCs, one for MariaDB (DB to store Ghost configuration) and one for Ghost itself (to store website data).
kubectl get pvc -n=ghost
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
arracs-ghost Bound pvc-a2d8532f-05f2-11e9-9dc7-000d3aa270bb 8Gi RWO default 1d

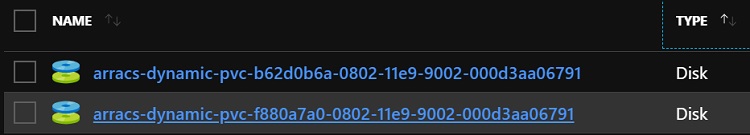

data-arracs-ghost-mariadb-0 Bound pvc-a2ec9cbc-05f2-11e9-9dc7-000d3aa270bb 8Gi RWO default 1dAs this cluster uses Azure, the K8S cloud provider will create two disks in Azure.

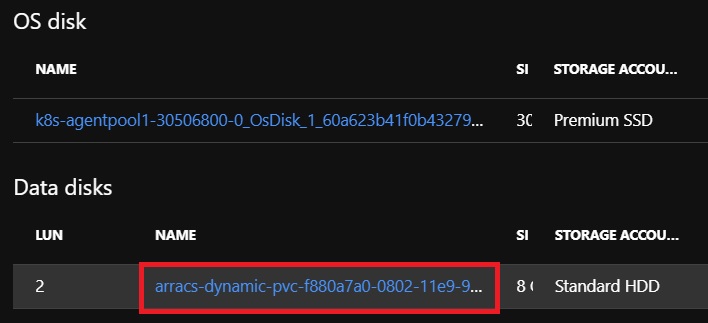

And the disks are programmed to attach to the corresponding agent nodes where Pods claim to use them. For example, if we check the agent VM from the Azure portal, we can see it has a data disk attached.
To check who is using the PVC, we can run
kubectl describe pvc arracs-ghost -n=ghost
Name: arracs-ghost
Namespace: ghost
StorageClass: default
Status: Bound
Volume: pvc-a2d8532f-05f2-11e9-9dc7-000d3aa270bb
Labels: app=arracs-ghost
chart=ghost-6.1.8
heritage=Tiller
release=arracs-ghost
Annotations: pv.kubernetes.io/bind-completed: yes
pv.kubernetes.io/bound-by-controller: yes
volume.beta.kubernetes.io/storage-provisioner: kubernetes.io/azure-disk
Finalizers: [kubernetes.io/pvc-protection]
Capacity: 8Gi
Access Modes: RWO
Events: <none>
Mounted By: arracs-ghost-6d8c65c6db-h45x2PVC is mounted by a Pod, and data will persist in it. Even if the Pod restarts, the same configuration can be applied. For example, if we run kubectl delete pod arracs-ghost-6d8c65c6db-h45x2, the newly created Pod will still mount this PVC.
If PVC is bound to a StatefulSet, even if the whole StatefulSet is deleted, the PVC still remains. In our case, data-arracs-ghost-mariadb-0 is bound to StatefulSet arracs-ghost-mariadb, so even if I delete arracs-ghost-mariadb, PVC arracs-ghost-mariadb still remains.
kubectl describe StatefulSet arracs-ghost-mariadb -n=ghost
Name: arracs-ghost-mariadb
Namespace: ghost
CreationTimestamp: Sat, 22 Dec 2018 22:05:28 +0800
Selector: app=mariadb,component=master,release=arracs-ghost
Labels: app=mariadb
chart=mariadb-5.2.5
component=master
heritage=Tiller
release=arracs-ghost
Annotations: <none>
Replicas: 824638335384 desired | 1 total
Update Strategy: RollingUpdate
Pods Status: 1 Running / 0 Waiting / 0 Succeeded / 0 Failed
Pod Template:
Labels: app=mariadb
chart=mariadb-5.2.5
component=master
release=arracs-ghost
Containers:
mariadb:
Image: docker.io/bitnami/mariadb:10.1.37
Port: 3306/TCP
Host Port: 0/TCP
Liveness: exec [sh -c exec mysqladmin status -uroot -p$MARIADB_ROOT_PASSWORD] delay=120s timeout=1s period=10s #success=1 #failure=3
Readiness: exec [sh -c exec mysqladmin status -uroot -p$MARIADB_ROOT_PASSWORD] delay=30s timeout=1s period=10s #success=1 #failure=3
Environment:
MARIADB_ROOT_PASSWORD: <set to the key 'mariadb-root-password' in secret 'arracs-ghost-mariadb'> Optional: false
MARIADB_USER: usr_ghost
MARIADB_PASSWORD: <set to the key 'mariadb-password' in secret 'arracs-ghost-mariadb'> Optional: false
MARIADB_DATABASE: db_ghost
Mounts:
/bitnami/mariadb from data (rw)
/opt/bitnami/mariadb/conf/my.cnf from config (rw)
Volumes:
config:
Type: ConfigMap (a volume populated by a ConfigMap)
Name: arracs-ghost-mariadb
Optional: false
Volume Claims:
Name: data
StorageClass:
Labels: app=mariadb
component=master
heritage=Tiller
release=arracs-ghost
Annotations: <none>
Capacity: 8Gi
Access Modes: [ReadWriteOnce]
Events: <none>To delete it manually, we need to run kubectl delete pvc arracs-ghost-mariadb -n=ghost.
4.4 Jobs
If we run kubectl get pod -n=kubeapps we can see some pods’ STATUS are ‘Completed’. For example
NAME READY STATUS RESTARTS AGE
apprepo-sync-bitnami-69xst-4c2sz 0/1 Completed 2 4m56s
apprepo-sync-incubator-n99hl-4f2hh 0/1 Completed 2 4m56s
apprepo-sync-stable-95879-tqp4t 0/1 Completed 2 4m56s
apprepo-sync-svc-cat-mdmhn-zgcbd 0/1 Completed 2 4m56sThose Pods are actually created by Jobs. Refer to Jobs - Run to Completion.
A job creates one or more pods and ensures that a specified number of them successfully terminate
Pick one of the Pods in ‘Completed’ status and check Controlled By: Job/apprepo-sync-bitnami-69xst; it means this Pod is created by a Job.
kubectl describe pod apprepo-sync-bitnami-69xst-4c2sz -n=kubeapps
Name: apprepo-sync-bitnami-69xst-4c2sz
Namespace: kubeapps
Priority: 0
PriorityClassName: <none>
Node: k8s-agentpool1-30506800-1/10.240.0.34
Start Time: Tue, 25 Dec 2018 14:34:22 +0800
Labels: apprepositories.kubeapps.com/repo-name=bitnami
controller-uid=1d6e98dd-080f-11e9-9002-000d3aa06791
job-name=apprepo-sync-bitnami-69xst
Annotations: <none>
Status: Succeeded
IP: 10.240.0.81
Controlled By: Job/apprepo-sync-bitnami-69xst
...The system currently has below Jobs defined.
kubectl get job -n=kubeapps
NAME COMPLETIONS DURATION AGE
apprepo-sync-bitnami-69xst 1/1 2m 9m48s
apprepo-sync-incubator-n99hl 1/1 107s 9m48s
apprepo-sync-stable-95879 1/1 4m19s 9m48s
apprepo-sync-svc-cat-mdmhn 1/1 107s 9m48s
